Sistema array FLX3 compatto, leggero e versatile grazie ad una potenza massima di 2x700W Program / 2x1400W Peak.
Il subwoofer attivo SOHO S12 è provvisto di DSP di controllo e di una uscita di potenza che permette di pilotare fino a 8 satelliti FLX3.
Potrete utilizzare il preset di fabbrica “FLX3” oppure gestire a proprio piacere volume ed equalizzazione tramite l’applicazione “Custom Sound” disponibile per Apple iPad. Per utilizzare l’applicazione sarà necessario selezionare il preset “User”, collegare tramite cavo ethernet il Soho S12 ad un access point e quindi connettere l’ iPad alla rete WiFi generata.

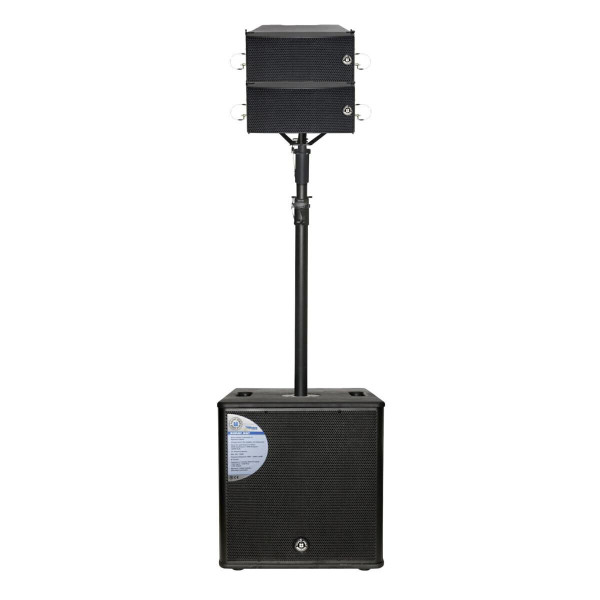

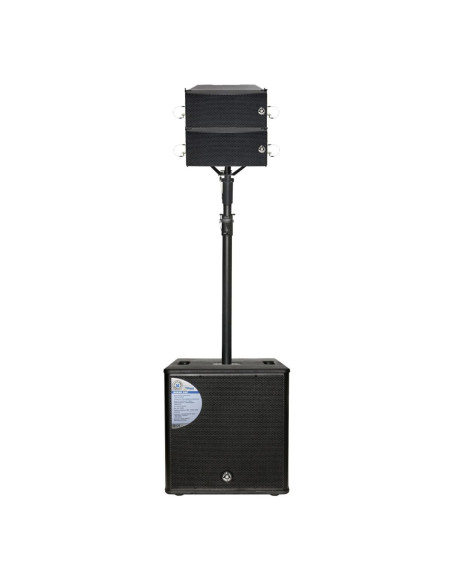

Sistema composto da n°2 FLX3, n°1 subwoofer SOHO S12FLX, staffa + asta di supporto e cavo SPEAKON /Jack 6.3mm.
Specifiche
Model 2xFLX 3
System Type 3″ 2-way Passive System
Output Power 40W (CONTINUOUS) , 80W (PROGRAM)
Sensitivity (1W/1M) 90dB
Maximum SPL @ 1m 106dB Max. (calculated)
Frequency Response 100Hz-20kHz (-10dB)
Impedance 8 ohms
Transducer Low 2 x 3” Woofer, 0.75” (19mm) Voice Coil
Transducer High 3 x Ø13mm Voice Coil Neodymium Tweeter
Crossover Frequency 2.5kHz
Dispersion(-6dB) 100° Horizontal, 30° Vertical (one module)
Attachment Points Adjustable Rigging System, Vertical Splay Adjustable in 1.5° Increments from 0°- 12°
Connectors Parallel or Series Ø6.3mm Socket / Selection Switch
Enclosure Construction Polypropylene Enclosure, steel Metal Grille with foam
Fittings information Steel Stirrup Material, 3 Flying Points
Dimensions (HxWxD) (W) 265mm x (H) 124mm x (D) 195mm; (W) 10.43″ x (H) 4.88″ x (D) 7.68″
Net Weight 3.2kg / 7.05 lbs
Model 1xSOHO S12FLX
Subwoofer 1 x 12″
Frequency response -6 dB 40 Hz – 500 Hz
Amplifier, subwoofer 1 x 350W / Class D @ 4 Ohms
Amplifier, satellite/ mid/ high unit 1 x 350W / Class D @ 4 Ohms
Axial sensitivity 1W@1m Axial sensitivity 1W@1m : 96dB
Electronic Protections Thermal / DC / Overload / Digital Lim./Compressor
Cooling Temperature-controlled fan

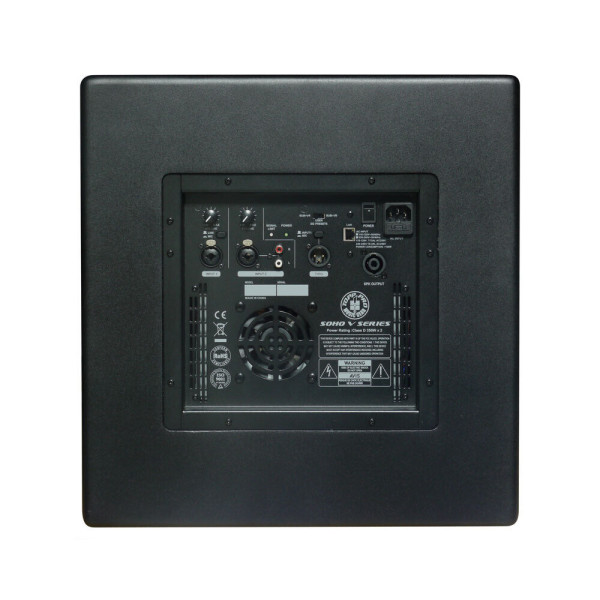

Connections 2 Combo-XLR 1/4” In, 1 XLR In, 1 RCA In L&R, 1 XLR Thru, 1 Speakon Out
External Controls Volume Control / Switch for Input sens / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / USB (Customer Sound)
Power Supply 115V/230V Switchable
Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet, handles
Mounting one metal standard pole-mount
